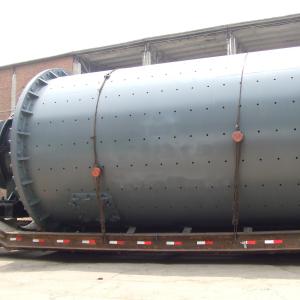

Ore Processing Grinder Mining Ball Mill for Lead and Zinc Beneficiation Plant
Technical Specifications and Performance
| Model(wet) | Rotating speed of cylinder | Input size(mm) | Motor Power(Kw) | Processing
Capacity(t/h) |
| | | | Tile | Bearing | |
| MQ1500*3000 | 33.3 | <=20 | 95 | 80 | 8-10 |
| MQ1500*6200 | 33.3 | <=20 | | 155 | 8-10 |
| MQ1600*4500 | 29.8 | <=20 | 130 | 130 | 7-14 |
| MQ1830*4500 | 26.25 | <=20 | 180 | 180 | 10-20 |
| MQ1830*7000 | 26.25 | <=20 | 245 | 245 | 10-20 |
| MQ1830*10000 | 26.25 | <=20 | | 320 | 10-20 |
| MQ2100*3000 | 24.6 | <=20 | 210 | 210 | 15-25 |
| MQ2100*4500 | 24.6 | <=20 | 245 | 245 | 15-25 |
| MQ2100*11000 | 24.6 | <=20 | | 570 | 15-25 |
| MQ2200*7000 | 23.7 | <=20 | | 380 | 20-35 |
| MQ2200*10000 | 23.7 | <=20 | | 500 | 20-35 |
| MQ2400*4500 | 22.6 | <=20 | 380 | 380 | 20-45 |
| MQ2400*8000 | 22.6 | <=20 | | 475 | 20-45 |
| MQ2400*10000 | 22.6 | <=20 | | 630 | 20-48 |
| MQ2700*3600 | 21.4 | <=20 | 475 | 380 | 25-50 |
| MQ2700*10000 | 21.4 | <=20 | | 1000 | 25-50 |
| MQ3200*6000 | 19.6 | <=20 | | 1000 | 30-60 |
| MQ3200*8000 | 19.6 | <=20 | | 1400 | 30-60 |
| MQ3600*4500 | 18.9 | <=20 | | 1250 | 35-82 |
| MQ3600*6000 | 18.9 | <=20 | | 1400 | 35-82 |
| Name | Cement Ore Processing Grinder 20mm Mining Ball Mill Machine 8t/H |
| Function | Cement Ore Processing |
| Feeding Size | 20mm |
The ball mill is composed of feeding part, discharging part, rotary part, transmission part (reducer, small transmission gear, motor, electric control) and other main parts. The hollow shaft is made of cast steel, and the lining can be replaced. The rotary gear is processed by casting hobbing. The cylinder is inlaid with a wear-resistant liner, which has good wear resistance. The machine runs smoothly and works reliably.
The main body of the ball mill includes a cylinder, which is inlaid with a lining made of wear-resistant materials, bearings that carry the cylinder and maintain its rotation, and drive parts, such as motors, transmission gears, pulleys, V-belts, etc.
Specifications Ball Mill:
1.for cement, silicate, ceramic
2.wet or dry ball mill
3. overflow or grate ball grinder
4.ISO CERT
Ball Mill:
Ball Mill grinds material by rotating a cylinder with steel grinding balls, causing the balls to fall back into the cylinder and onto the material to be ground. The rotation is usually between 4 to 20 revolutions per minute, depending upon the diameter of the mill. The larger the diameter, the slower the rotation. If the peripheral speed of the mill is too great, it begins to act like a centrifuge and the balls do not fall back, but stay on the perimeter of the mill. The point where the mill becomes a centrifuge is called the "Critical Speed", and ball mills usually operate at 65% to 75% of the critical speed.
